1.5KW&5KW High-Performance Mid-Drive Motor Kit-Tera
1. PRODUCT OVERVIEW
The Tera Mid-drive motor kit is a high-grade electric drive solution designed for H e a v y – dut y electric motorcycles, dirt bikes , By integrating our self-developed Hairpin Winding Motor with a high- efficiency Field Oriented Control (FOC) controller, this kit delivers industry-leading power density, superior thermal management, and a seamless riding experience. There are two model avaiable ,one is 1500W for entry level ,another one is 5000W for professonial players.
2. KEY FEATURES
Extreme Power-to-Weight Ratio:
Engineered for performance enthusiasts, delivering a peak power output in a lightweight package, significantly reducing weight for better vehicle handling.
Intelligent Flux Weakening:
Advanced software algorithms that extend the motor’s RPM range beyond its base speed, allowing for a significantly higher top speed without requiring a higher voltage battery.
Active Thermal Management:
Integrated high-precision temperature sensors with intelligent thermal throttling to protect the motor and controller during extreme high-load operation.
Multi-Protocol Communication (One Wire/CAN-BUS/RS485):
Equipped with professional-grade communication interfaces for seamless integration with modern BMS, displays, and vehicle control units (VCU).
Multi-Protections:
Overvoltage protection; undervoltage protection; overcurrent protection; temperature protection; communication interruption protection; short circuit protection;Stall protection.
3. TECHNICAL SPECIFICATIONS
Mid-drive motors:
| Parameter | 1500W KIT | 5000W KIT |
| Motor Model | 120-060 | 138-065HP |
| Motor Type | PMSM | PMSM |
| Rated Voltage | 60V/72V | 72V |
| Rated Power | 1.5KW | 5KW |
| Peak Power | 3.2KW | 10KW |
| Rated RPM | 3000RPM | 4400RPM |
| Maximum RPM | 5000RPM | 7000RPM |
| Maximum Efficiency | ≥ 80% | ≥ 95% |
| Winding Type | Normal | Hairpin Winding |
| Peak Torque(Axle) | 30N.M | 52N.M |
| Temperature Sensor | NTC-10K | KTY84-150 |
| Position Sensor | Hall/Magnetic Encoder | Magnetic Encoder |
| Magnet Height | 60H | 60H |
| Magnet Model | H | SH |
| Magnet Pole Pairs | 5 Pairs | 5 Pairs |
| Cooling system | Air cooling | Air cooling |
| Reduction Ratio | None | 2.8 |
| IP Level | IP 65 | IP 67 |
FOC Controllers:
| Parameter | 1500W KIT | 5000W KIT |
| Controller Model | PB72070-CX-12B | PB72150-CX-18B |
| Rated Voltage | 60V/72V | 72V |
| Rated Power | 1.5KW | 5KW |
| Peak DC Current | 70A | 150A |
| Peak Phase Current | 240A | 450A |
| Communication Mode | CAN/485/ONE WIRE | CAN/485/ONE WIRE |
| Operating Temperature | -30~55℃ | -30~55℃ |
4. PRODUCT SIZE

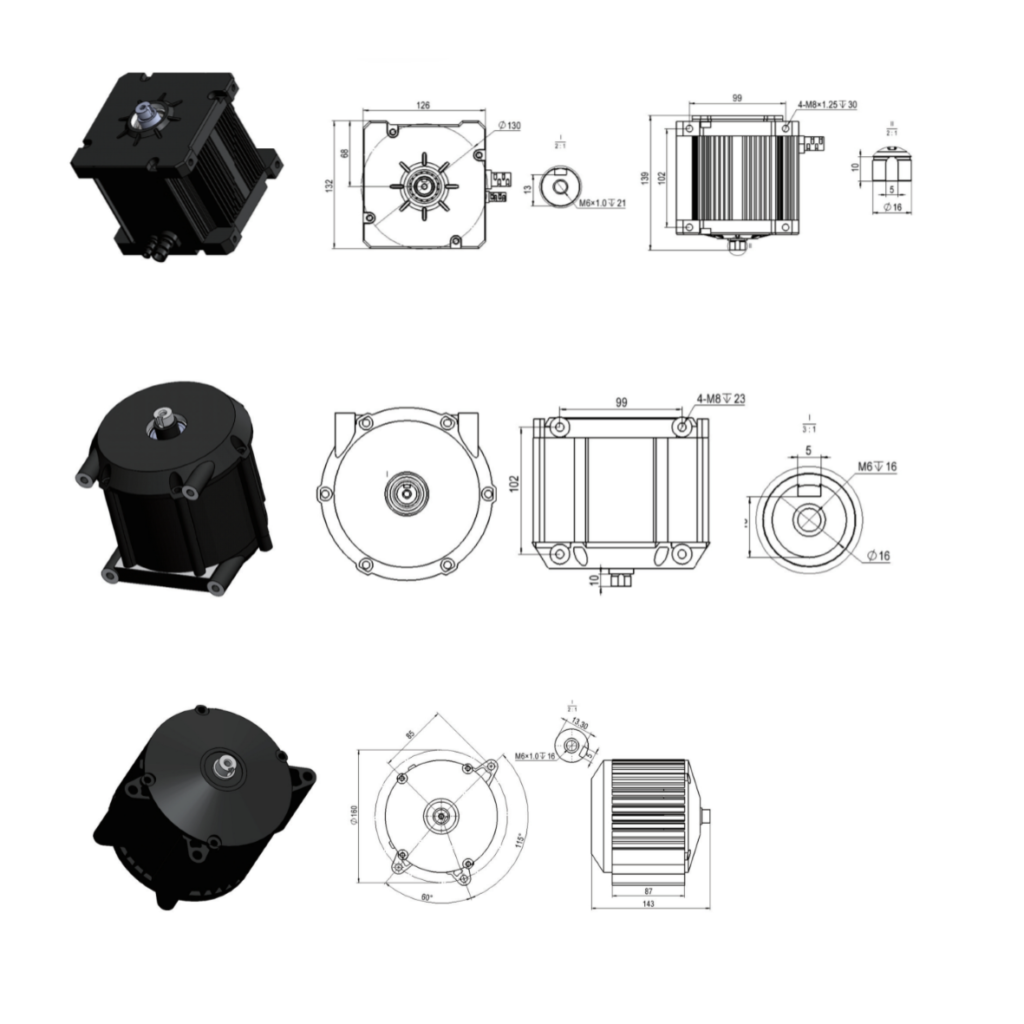

1500W Motors:

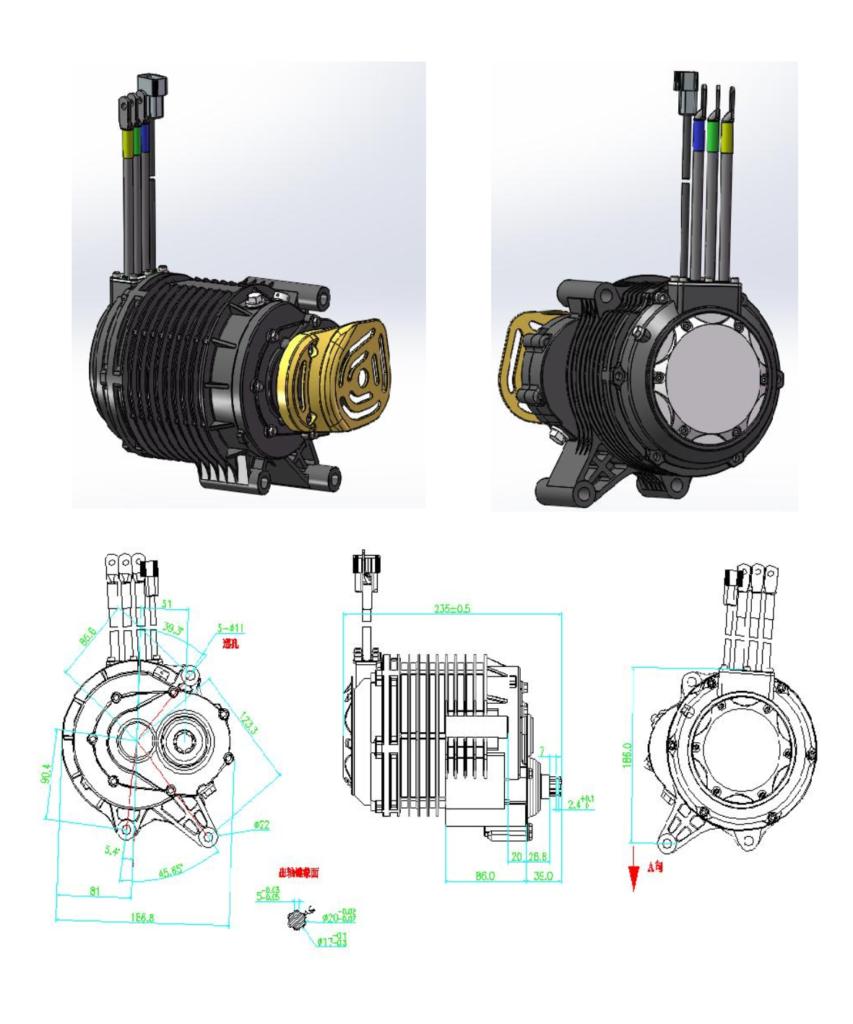

5000W Motor:

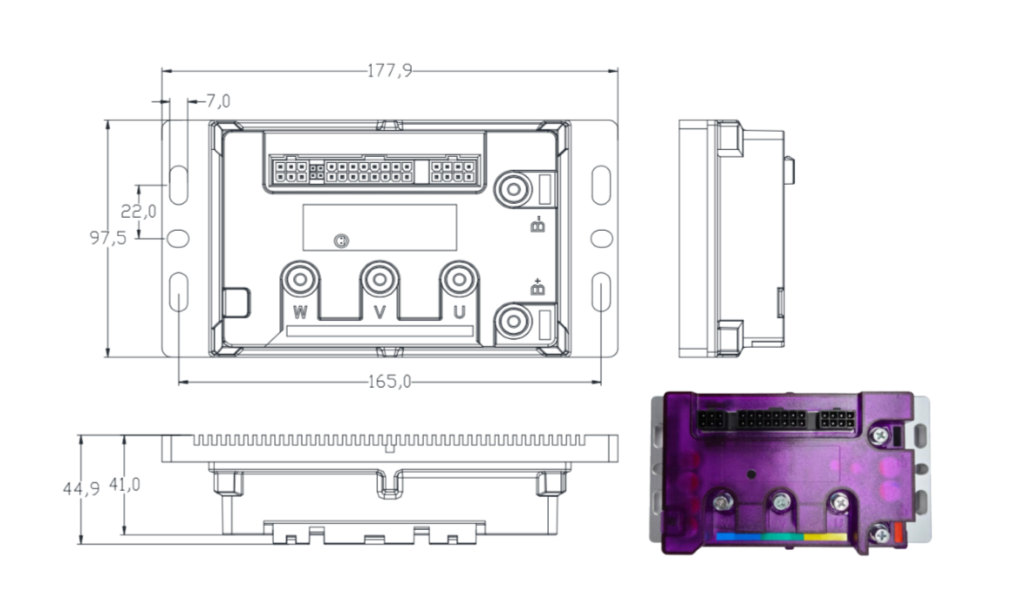

1500W Controller:

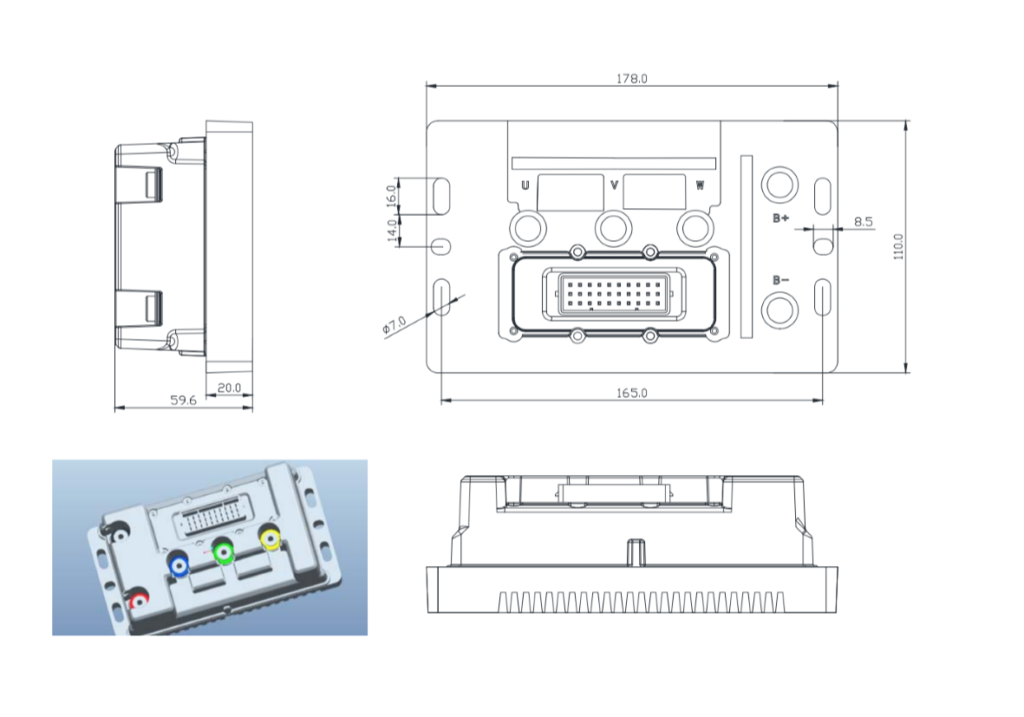

5000W Controller:
5.The Whole Bundle with Accessories
Complete Electric Conversion Kit Bundle
Streamline your electric vehicle build with our “all-in-one EV conversion kit”. Engineered for full compatibility with PMSM mid-drive motors, this comprehensive bundle delivers everything you need straight out of the box — no additional sourcing, no compatibility guesswork, no wiring headaches.

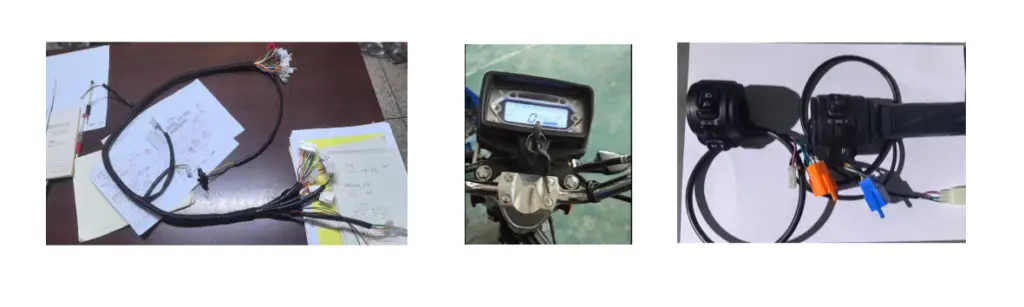

What’s Included:
-PMSM Motor
-FOC Controller
-Pre-assembled High-Current BUS Cables
-Multi-function LCD Display Panel
-Throttle with Multi-switch
Why Choose Our Kit?
✅ Plug-and-play design reduces installation time significantly
✅ All components pre-tested for cross-compatibility
✅ Ideal for both beginner builders and experienced EV engineers
✅ Trusted by customers across North America, Europe, and Southeast Asia
Perfect for DIY electric motorcycle conversions, e-bike upgrades, moped electrification, and light electric vehicle projects worldwide. Compatible with 60V / 72V battery systems.
6.Applications

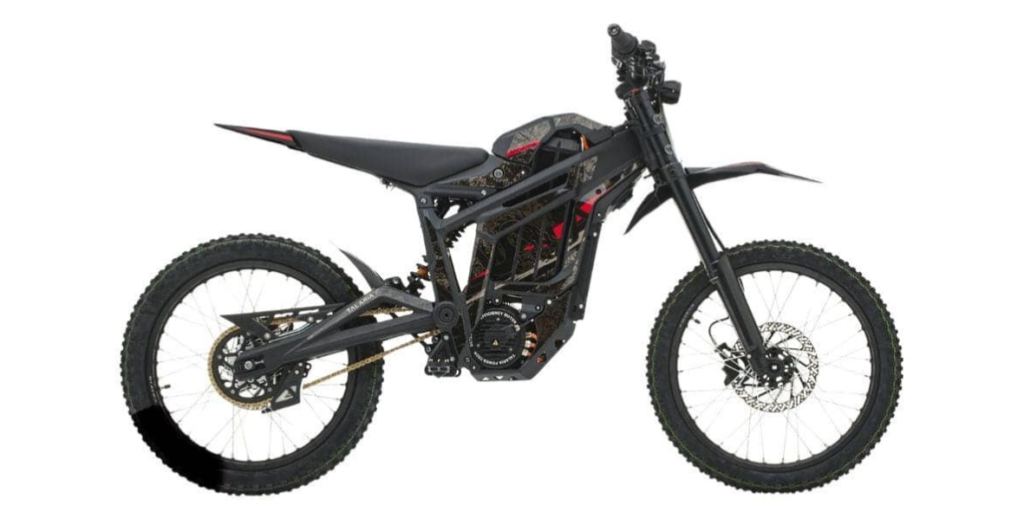

Electric Dirt Bikes:

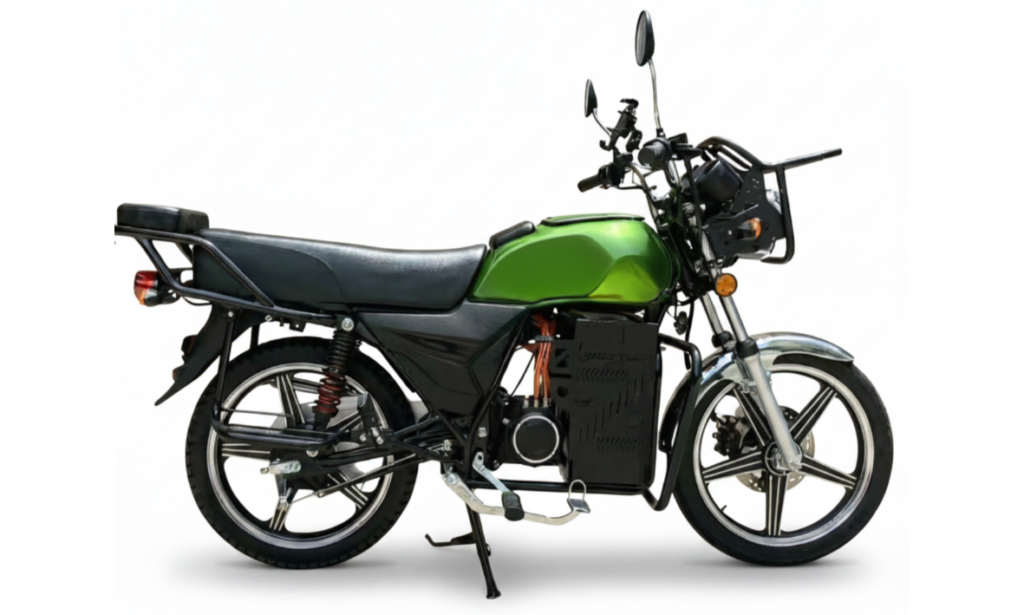

Electric Motorcycle:

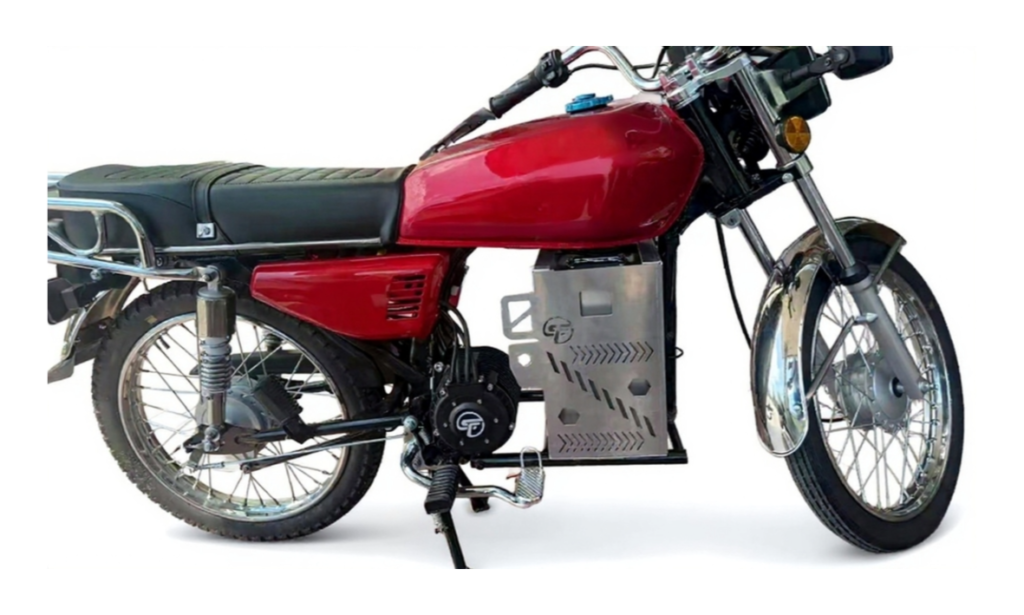

Convert Traditional Motorcyle to Electric One / DIY
Pls contact with us for more similar models,we can customize for you !
